Product Description:

Key feature:

1. Optimized optical configuration, smooth and efficient airflow design,

2. Knob type focus adjustment, high precision and flexibility. adjustment range : 20mm, accuracy: 0.05mm.

3. Drawer type design of protection glass seat, simple and fast to replace protection glass.

4. Built-in ring-blowing and side-blowing structure inside the protection glass seat, offers protection on cutting reflective material, dross flying during piercing on a thick plate.

5. Collimator and focus lens parts both have a water cooling structure, which enables laser head supports laser power up to 4kw.

6. Collimator and focus lens both use the special composite lenses, ensuring high-quality optical beam and cutting.

7. QBH, QD fiber connectors all available, support almost all laser power brands on the market.

8. Modular design, easy maintenance.

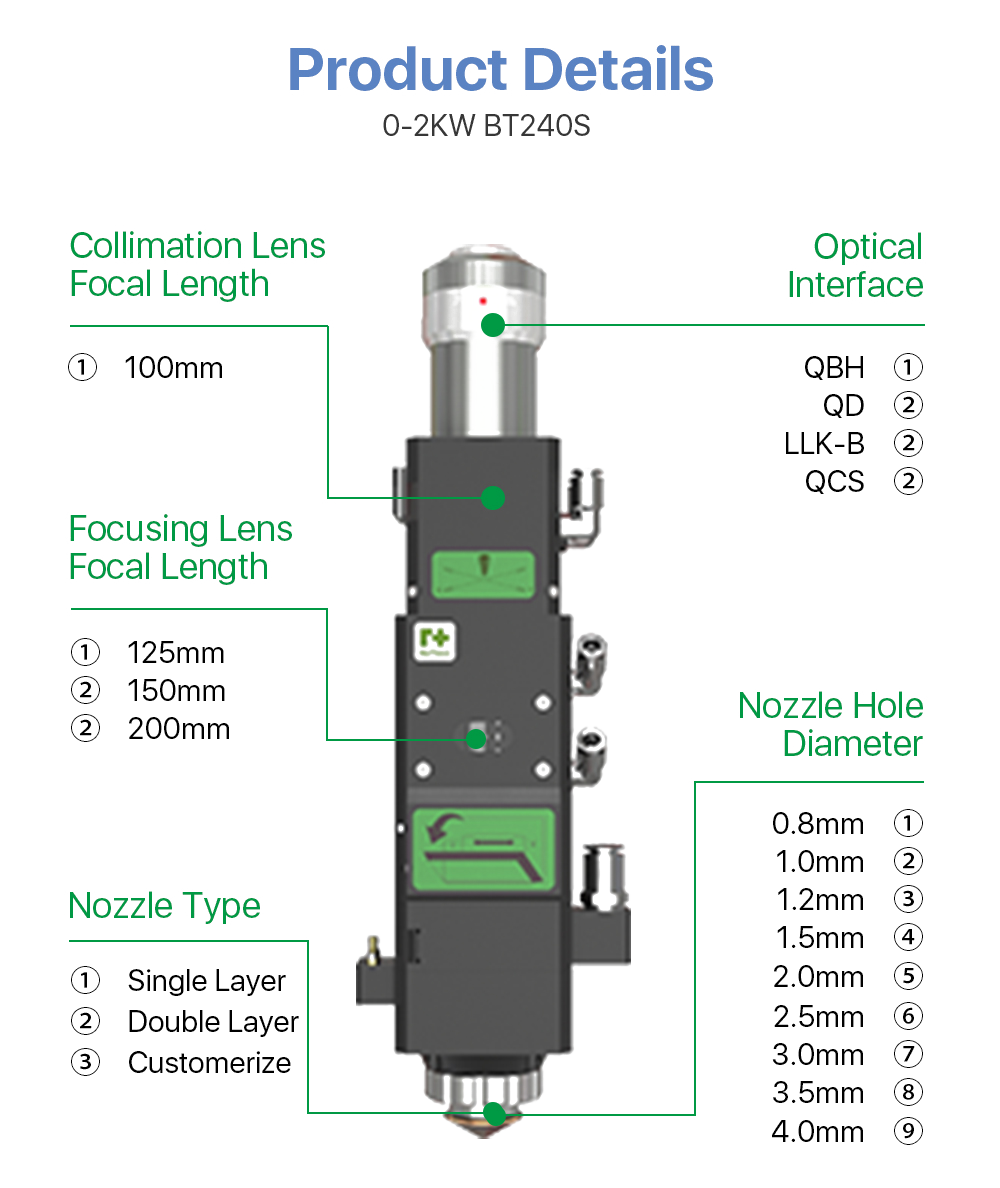

Specification:

Support laser power: 500W, 1000W, 1500W, 2000W,

Focus lens option(wave: 1025-1080nm): 100mm, 125mm, 150mm, 200mm(2D).

Optical through aperture: 25mm,

Cutting nozzle: 1.0mm—3.0mm,

Cutting nozzle type: single layer, double-layer, and another customized nozzle.

Gas pressure: Max 30Bar.

Gross weight: 2.5kg.

Collimator:

Focus range option( wave: 1025-1080nm): 60mm, 75mm, 100mm,

Optical through aperture: 28mm,

Fiber connector: QBH, LLK-B, QD.
