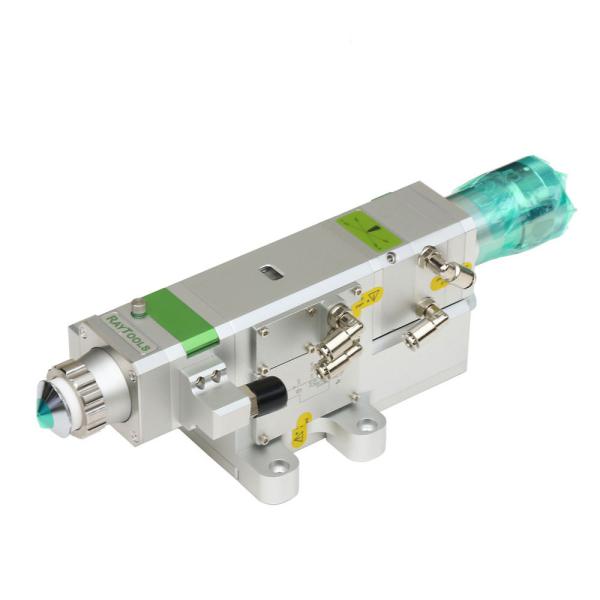

    Sheet Metal Cutting BM109 Raytools Laser Head

    Ask Lasest Price
    Brand Name : TAIYI
    Model Number : BM109
    Certification : CE
    Price : Contact us for the price
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 500 pieces per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Sheet Metal Cutting BM109 Raytools Laser Head

    Raytools BM109 Automatic Focus Cutting Head Laser Cutting Parts

    Product Description:


    BrandRaytools
    ModelBM109
    Power Rating0-1.5KW
    Clear Aperture28mm
    Collimator protective glassφ24.9mm*1.5mm
    Focusing protective glassφ27.9mm*4.1mm
    Assist gas Pressure≤25bar

    The BM109 series is an automatic focusing optical fiber cutting head launched by Swiss RAYTOOLS AG in 2017 for the below 1.5kw. The motor drive unit is built into the product, and the focus lens is driven by a linear mechanism to automatically change the position within 17mm. The user can complete the rapid perforation of thick plates and automatically cut plates of different thickness and materials by setting continuous focus through the program. This product is equipped with D28 composite lens group to integrate the beam, optimize the design of optics and water cooling so that the laser head can work stably for a long time.


    Optimized design structure:
    Modular, easy to maintain, reduce downtime.
    Multiple protective lenses:
    Three protective lenses, highly protective collimating focusing lens.
    Durability:
    2 channels of optical water cooling, effectively extend the continuous working time.
    Highly dustproof:
    IP65 class dust proof, patent protection lens cover plate, dust proof without dead Angle.
    Closed-loop step by step automatic focus:
    Adopt closed-loop stepper motor to avoid losing step effectively. Focus speed 100mm/s, repeat accuracy 1 m.
    Fast perforation and high-speed cutting:
    16mm mild steel, perforation time <6 seconds, cutting speed 0.6m/min @1500w.

    Automatic focus plane cutting head
    Power level: 1500W
    Collimating lens focal length: 100mm
    Focal length of focusing lens: 125mm, 150mm
    Auto focus:
    - range: +8~-9mm
    - acceleration: 10m/s
    - speed: 6m/min
    - accuracy: 50μm
    Nozzle hole specification: single layer, double layer, non - standard
    Optical fiber interface: QBH, QD
    Nozzle aperture: 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm, 3.5mm, 4.0mm, 4.5mm, 5.0mm
    Focusing aperture: 26mm
    To protect the lens
    -Collimating protective mirror:φ 24.9mm*1.5mm
    -focusing protective mirror: φ27.9mm*4.1mm
    Auxiliary gas pressure: 25bar
    Weight: ~ 3kg
